Era SM Spectroscopy Module

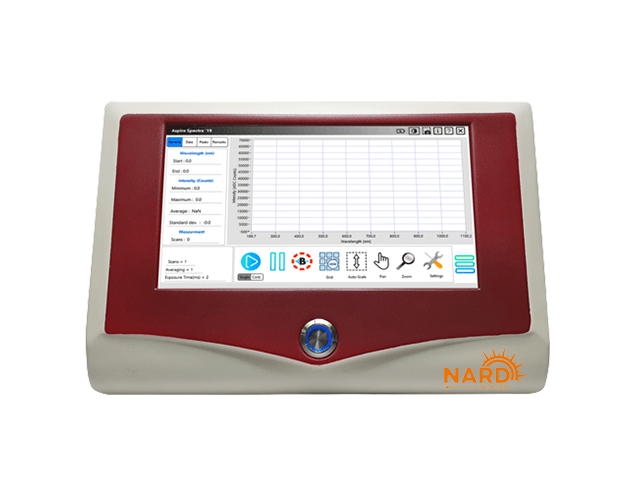

1) ERA-SM

This is a Spectroscopy Module with Built in Processor, Touch screen display with easy to use GUI, Battery Pack to make it field ready and Memory to store data on the go. All this comes in compact size & light weight package. User having ERA SM can work without connecting any PC/Laptop making our system Portable and Field useable.

Application
  • Plasma Measurement
  • Absorption
  • Transmission
  • Reflection
  • Fluorescence
  • PL Setup
  • Precision Agriculture & Plant
  • Precision Agriculture & Plant Research
Salient Features
  • Portable
  • Battery Backup of 4hrs
  • Inbuilt Memory
  • Compact Size
  • Light Weight
  • Optional Alignment Laser for accurate alignment of sample with fiber probe
  • Precision Agriculture & Plant
  • Touch Screen Display
m1
m2
ERA SM-UV VIS

ParameterSpecification
Spectral Range200-1100 nm
Resolution0.1 – 10 nm
Signal Acquisition time30 usec – 30s
Event TriggerAuto Trigger for synchronizing the event and detection through fast optical as well as TTL
Signal collectionFiber coupled with front end optics
DetectorCMOS Linear Image Sensor 2048 pixels
Data Transfer Speed< 5 ms/scan
Alignment Laser for accurate alignment of sample with fiber probeInbuilt
ProcessorInbuilt
Display7-inch capacitive touch display with an option for remote monitoring via WiFi or Ethernet.
BatteryBattery backup of 4 Hrs (Optional)
SoftwareCentralized software allowing control of entire system and its triggers (In/Out). The mail GUI will show the spectrum of signal, can store and generate test report
Data transferOption is available to transfer the measured data in .xls, .csv, .txt
Operating Temperature0-55°C

ERA SM-NIR

ParameterSpecification
Spectral Range900-1500 nm
Resolution5.7 – 84.5 nm
Signal Acquisition time20usec – 500s
Event TriggerAuto Trigger for synchronizing the event and detection through fast optical as well as TTL
Signal collectionFiber coupled with front end optics
DetectorInGaAs linear array, 256 pixels (2 stages TE Cooling- Optional)
Data Transfer Speed0.4 – 1.11 ms/scan
Alignment Laser for accurate alignment of sample with fiber probeInbuilt
ProcessorInbuilt
Display7-inch capacitive touch display with an option for remote monitoring via WiFi or Ethernet.
BatteryBattery backup of 4 Hrs (Optional)
SoftwareCentralized software allowing control of entire system and its triggers (In/Out). The mail GUI will show the spectrum of signal, can store and generate test report
Data transferOption is available to transfer the measured data in .xls, .csv, .txt
Operating Temperature0-55°C

ERA SM-MIR

ParameterSpecification
Spectral Range2000nm-5000nm
Resolution4cm-1 (2nm@2000nm, 10nm@5000nm)
Signal Acquisition time1spectra/sec
Event TriggerAuto Trigger for synchronizing the event and detection through fast optical as well as TTL
Signal collectionFiber coupled with front end optics
Detector2 Stage MCT Detector
Data Transfer Speed1.5sec/scan
Alignment Laser for accurate alignment of sample with fiber probeReference laser inbuilt
ProcessorInbuilt
Display7-inch capacitive touch display with an option for remote monitoring via WiFi or Ethernet.
BatteryBattery backup of 4 Hrs (Optional)
SoftwareCentralized software allowing control of entire system and its triggers (In/Out). The mail GUI will show the spectrum of signal, can store and generate test report
Data transferOption is available to transfer the measured data in .xls, .csv, .txt
Operating Temperature0-55°C

2) ERA-CORE

ERA Core is the bare version of ERA SM. It belongs to spectroscopic family of instruments which are comprised of high-performance spectrometers which exceed the demands of most general spectroscopy laboratory applications. This instrument line offers a wide array of solutions for various use cases while providing excellent price-to-performance ratio.
User can choose specifications from the UV-VIS ,NIR ,IR & MIR models.

m18
m19
m17
m15
m16
m14
ERA CORE- UV-VIS

Spectral coverageUV-VIS,2048UV-VIS,4096
Spectral range (nm)200-1100, depending on configuration200-1100, depending on configuration
Slit size (µm)10/25/50/100/200/50010/25/50/100/200/500
Replaceable slitOptionalOptional
ConnectorSMA / FC-PCSMA / FC-PC
Sensitivity (counts/µW per ms)375,000218,000
Resolution(FWHM)0.06-20 nm, depending on configuration0.05-20 nm, depending on configuration
InterfaceUSB 3.0 high speedUSB 3.0 high speed
A/D convertor16 bit, 6 MHz16 bit, 6 MHz
DetectorCMOS linear image sensorCMOS linear image sensor
Integration time9 µs-59 sec9 µs-40 sec
Dimensions (mm)177 x 127 x 44.5177 x 127 x 44.5
Weight (kg)1.11.1

ERA CORE-NIR

Spectral coverageNIR-256NIR-512
Spectral range (nm)900-1700nm, depending on configuration900-1700nm, depending on configuration
Slit size (µm)25/50/100/20025/50/100/200
Replaceable slitOptionalOptional
ConnectorSMA / FC-PCSMA / FC-PC
Sensitivity (counts/µW per ms)8,200,0003,800,000
Resolution(FWHM)2.0-50 nm, depending on configuration2.0-50 nm, depending on configuration
InterfaceUSB 3.0 high speedUSB 3.0 high speed
A/D convertor16 bit, 6 MHz16 bit, 6 MHz
DetectorInGaAs linear array, 256 pixels, 50 µm x 500 µmInGaAs linear array, 512 pixels, 25 µm x 500 µm
Integration time10 µs-10 sec10 µs-10 sec
Dimensions (mm)185 x 84 x 185185 x 84 x 185
Weight (kg)2.72.7

ERA CORE-MIR

Parameter
Specification
Spectral Range2000nm-5000nm
Resolution4cm-1 (2nm@2000nm, 10nm@5000nm)
Signal Acquisition time1spectra/sec
Event TriggerAuto Trigger for synchronizing the event and detection through fast optical as well as TTL
Signal collectionFiber coupled with front end optics
Detector2 Stage MCT Detector
Data Transfer Speed1.5sec/scan
Alignment Laser for accurate alignment of sample with fiber probeReference laser inbuilt
SoftwareCentralized software allowing control of entire system and its triggers (In/Out). The mail GUI will show the spectrum of signal, can store and generate test report
Data transferOption is available to transfer the measured data in .xls, .csv, .txt
Operating Temperature0-55°C

3) ERA-MULTI CHANNEL

ERA Multichannel is designed for High Resolution spectroscopy while covering wide Spectral range.

Example

If a user is having a application based on Plasma measurement & his working spectral range is 200 to 1100 nm. User is expecting results at every 0.4 nm then it is not possible to have this resolution with a single channel spectrometer. User can choose option for Multichannel Spectrometer where they have an option to choose from multiple gratings to cover large Bandwidth with High resolution.

Combination of up to 16 channel spectrometer in one complete unit which will have a common GUI. Output of each channel of spectrometer is synchronized both by Software as well as by Hardware. With an option of onboard data saving using FPGA or on disk is possible.

Pairs can be chosen from UV / VIS /NIR /IR & MIR models of ERA-Core.

Application
  • Plasma spectral analysis
  • Soil pollution analysis
  • Heavy metal analysis
  • Food safety analysis
  • Biological analysis
Salient Features
  • High resolution
  • Customized the quantity of channels and spectral range
  • Include synchronous delay device
  • Internal/ external control mode
  • Suitable for Spectral Analysis and LIBS software
m3
m4
4) ERA-Mini

The ERA Mini module is based on Hamamatsu C12880MA  sensor .ERA MINI is a fingertip sized, ultra compact, lightweight spectrometer compatible with off the shelf Arduino boards for OEM integration. The C12880MA Spectrometer is used to detect wavelengths of light and their intensities.

Application
  • Spectroscopy
  • Color detection
  • Biometry
  • Tester for lights, Led, etc.
  • Food inspection
Salient Features
  • Plug and Play connection with Arduino (UNO & MEGA boards only).
  • Separate controller board is also provided for independent functions.
  • Option for Led with Intensity / Brightness control.
  • Light weight < 20g.
m6
m39
gdg

S.No.ParameterSpecification
1Wavelength Detection Range340 – 850 nm
2Detector TypeCMOS
3Spectral Resolution15nm
4Entrance slit aperture Size50 x 500 um
5Number of Pixels288
6SensitivityHigh
7Hermetic PackageHigh reliability against humidity
8Temperature Range+5 to +50°C
9Power Input5V
10Weight (g)18 g
11Dimension (mm)52 X 28 X 33

5) ERA- MEMS-FPI

The ERA Mini module is based on Hamamatsu C13272/C14272/C1427 sensors .ERA Mems FPI is a compact module based on an InGaAs PIN photodiode and MEMS FPI tuneable filter which can vary its transmission wavelengths.
fingertip sized, ultra compact, lightweight spectrometer compatible with off the shelf Arduino boards for OEM integration. The C12880MA Spectrometer is used to detect wavelengths of light and their intensities.

Application
  • Spectroscopy
  • Color detection
  • Moisture detection
  • Plastic screening.
  • Food inspection.
  • Fabric identification.
Salient Features
  • Plug and Play connection with PC.
  • High speed measurement
  • Separate controller board is available with swapable sensor option.
  • Option for tungsten lamp with Intensity / Brightness control.
  • Light weight < 100g.
m8
m37

S.No.ParameterSpecification
1Wavelength Detection Range1550 – 2150 nm
2Detector TypeInGaAs
3ADC16bit
4Spectral Resolution22nm
5Spectral reproducibility+2nm
6Number of Pixels1
7SensitivityHigh
8Hermetic PackageHigh reliability against humidity
9Temperature Range+5 to +50°C
10Power Input5V
11Weight (g)880 g
12Dimension (mm)80 X 38 X 19

6) ERA HS

Era HS is the answer for those who are in need of high resolution and high sensitivity! This spectrometer combines the best of both worlds, so no compromise is needed. The Era HS is built around our High-Sensitivity &Compact (HS), 75mm or 100mm optical bench offering a cooled, back-thinned detector option.

Application
  • Spark Monitoring of HV electrical appliances
  • Raman Spectroscopy
  • Fluorescence Measurement
  • Irradiance Measurement
  • LIBS and Plasma Monitoring
  • Color Measurement
  • Laser Spectra Test
Salient Features
  • Integrated Temperature Regulator
  • Symmetrical Czerny-Turner optical design
  • Wavelength Range & Slit are user Selectable
  • High Resolution & Low Stray light.
m21
m20

Spectral coverageUV-VIS, uncooledUV-VIS, TE cooledNIR 256NIR 512
Spectral range (nm)200-1160, depending on configuration200-1160, depending on configuration900 – 1700 nm, depending on configuration900 – 1700 nm, depending on configuration
Slit size (µm)25/50/100/200/50010/25/50/100/200/50025/50/100/200/50025/50/100/200/500
Replaceable slitOptionalOptionalOptionalOptional
Temperature cooledNoMax. ΔT = -30°C versus ambientMax. ΔT = -25°C versus ambientMax. ΔT = -25°C versus ambient
ConnectorSMA / FC-PCSMA / FC-PCSMA / FC-PCSMA / FC-PC
Sensitivity (counts/µW per ms)445,000300,0004,800.0002,500,000
Resolution(FWHM)0.2-7 nm, depending on configuration0.09-20 nm, depending on configuration1.9-32 nm, depending on configuration0.88-32 nm, depending on configuration
InterfaceUSB 3.0 high speedUSB 3.0 high speedUSB 3.0 high speedUSB 3.0 high speed
A/D convertor16 bit, 6 MHz16 bit, 6 MHz16 bit, 1.2 MHz16 bit, 1.2 MHz
DetectorCMOS linear image sensorCMOS linear image sensorTE-cooled InGaAs linear array, 256 pixelsTE-cooled InGaAs linear array, 512 pixels
Integration time5.2 ms-180 sec9.7 ms-10 minutes20 µs-20 seconds20 µs-20 seconds
Dimensions (mm)185 x 161 x 185185 x 145 x 184185 x 145 x 184185 x 145 x 184
Weight (kg)3.53.53.53.5

7) ERA Absorb

ERA Absorb is the application oriented version of ERA SM. It packs an ERA CORE spectrometer with an ultra stable broadband light source and an inbuilt sample holder. The broadband light source has an option of LED or Quartz Halogen with constant power. It removes the need for any fiber or samples holder for Absorption applications making it a very cost effective option. It is also pre-aligned and can take glass slides / cuvette / circular vial.
User can choose specifications from ERA CORE UV-VIS ,NIR ,IR models.

m10
m9
m13
m12
m11

Spectral coverageUV-VIS,2048UV-VIS,4096
Spectral range (nm)200-1100, depending on configuration
200-1100, depending on configuration
Slit size (µm)10/25/50/100/200/50010/25/50/100/200/500
Replaceable slitOptional
Optional
ConnectorSMA / FC-PCSMA / FC-PC
Sensitivity (counts/µW per ms)375,000218,000
Resolution(FWHM)0.06-20 nm, depending on configuration
0.05-20 nm, depending on configuration
InterfaceUSB 3.0 high speed
USB 3.0 high speed
A/D convertor16 bit, 6 MHz
16 bit, 6 MHz
DetectorCMOS linear image sensorCMOS linear image sensor
Integration time9 µs-59 sec9 µs-40 sec
Dimensions (mm)177 x 127 x 44.5177 x 127 x 44.5
Weight (kg)1.11.1

Spectral coverageNIR-256NIR-512
Spectral range (nm)900-1700nm, depending on configuration900-1700nm, depending on configuration
Slit size (µm)25/50/100/20025/50/100/200
Replaceable slitOptionalOptional
ConnectorSMA / FC-PCSMA / FC-PC
Sensitivity (counts/µW per ms)8,200,0003,800,000
Resolution(FWHM)2.0-50 nm, depending on configuration2.0-50 nm, depending on configuration
InterfaceUSB 3.0 high speedUSB 3.0 high speed
A/D convertor16 bit, 6 MHz16 bit, 6 MHz
DetectorInGaAs linear array, 256 pixels, 50 µm x 500 µmInGaAs linear array, 512 pixels, 25 µm x 500 µm
Integration time10 µs-10 sec10 µs-10 sec
Dimensions (mm)185 x 84 x 185185 x 84 x 185
Weight (kg)2.72.7

Accessories
1. Fiber Optic Cable
  • Core Diameter: 1500μm, 1000μm, 800μm, 600μm, 400μm, 200μm, 100um
  • Length: 2 meter / 1 meter
  • SMA/FCPC
  • Wavelength: 200-2500
  • Metal Jacketing
2. Multi-Furcated Fiber-Optic Cables
  • Core Diameter: 1500μm, 1000μm, 800μm, 600μm, 400μm, 200μm, 100um
  • Furcation: 4//5/6/8 : 1
  • Splitting Point: at the Middle
  • SMA/FCP
  • Metal Jacketing
3. Fiber Combiner
  • Spectrum range 200-2500nm
  • Spectral sampling attachment
  • Collimation and focusing
  • SMA/FCP
  • Metal Jacketing
4. Fiber Optic Attenuator
  • Connector: SMA at both end
  • Intensity attenuation up to 0 to 100% through knob Manually
  • Photo catalysis
  • Slot to hold 12.5 mm filter
  • Material: Aluminum
  • Provision to mount over the breadboard
  • Included with Collimating lens at both end to increase the coupling Efficiency
5. Collimating Lens
  • Spectrum range 200-2500nm
  • Spectral sampling attachment
  • Collimation and focusing
6. Cosine Corrector
  • Optical Diffuser: Opaline glass / PTFE
  • Wavelength Range: 200-2500nm
  • Field Of View: 180
m5
m7
m30
m31
m32
m33
m34
